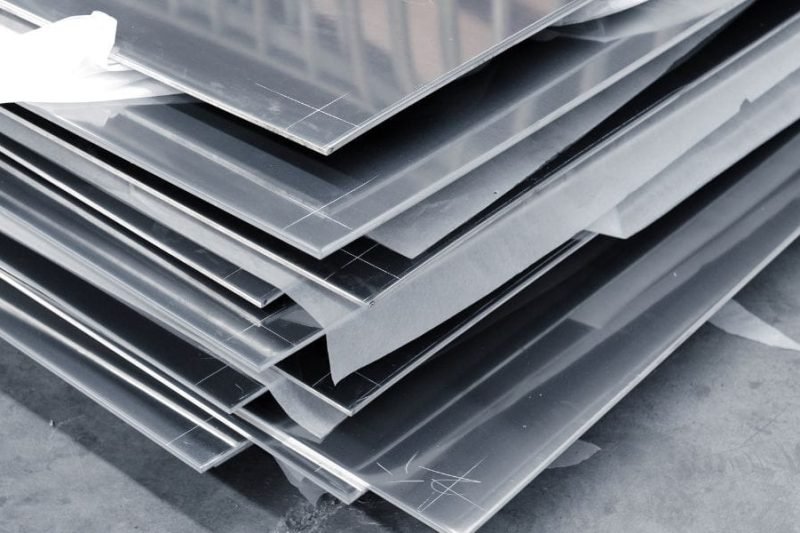

The Best Materials for LED PCB Boards

The Best Materials for LED PCB Boards

When designing printed circuit boards for LED lighting applications, selecting the right board materials is crucial. The materials used for insulating, conducting, and supporting the LED circuitry have a major impact on the thermal management, electrical performance, reliability, and cost of the finished boards. Carefully considering the PCB material choices allows LED system manufacturers to create designs that dissipate heat effectively from the LEDs, maintain signal integrity, withstand fabrication processes, and control costs.

Factors like thermal conductivity, dielectric properties, manufacturability, and expenses must all be evaluated when specifying materials for LED PCBs. Each material option presents tradeoffs that must align with the specific performance, lifetime, budget, and application requirements. By optimizing the materials selection, LED luminaries and displays can achieve superior functionality, longevity, and value.

This article provides guidance on choosing the best PCB materials for LED applications. It covers key considerations around thermal dissipation, electrical properties, manufacturability, and cost analysis of common material options. The goal is to demystify PCB material selection for LED systems and help manufacturers make informed design decisions. Keep reading to learn what matters most when specifying materials for your next LED PCB design.


Thermal Management of LED PCB Materials

Managing heat dissipation is critical when selecting materials for LED PCB. As LEDs generate light, they also produce heat that must be conducted away from the LEDs and distributed across the PCB to avoid excessive temperatures. If heat is not properly dissipated, it can lead to reduced light output, color shifting, accelerated lumen depreciation, and premature LED failure.

The two most important thermal properties to evaluate for LED PCB materials are thermal conductivity and dielectric constant. Thermal conductivity indicates how well heat travels through the material, while the dielectric constant affects thermal transfer efficiency from the LEDs to the board. Materials with higher thermal conductivity, such as metals, ceramics, and some composites, provide the best performance for heat dissipation.

Insulating materials commonly used for LED PCBs must balance thermal dissipation abilities with electrical insulation and dielectric properties. Some popular choices include:

  • FR4 – The most common and cost-effective option. The glass fiber reinforcement increases thermal conductivity compared to pure resin.
  • Metal core PCBs – Typically an aluminum or copper base to absorb and spread heat, coated with a dielectric layer.
  • Ceramic PCBs – Made from aluminum oxide or aluminum nitride. Provides maximum thermal performance but at a higher cost.

The goal is to dissipate heat across the entire PCB and avoid localized hot spots around the LEDs. Carefully selecting PCB materials that can draw heat away from LEDs and distribute it effectively is key to LED reliability and longevity.

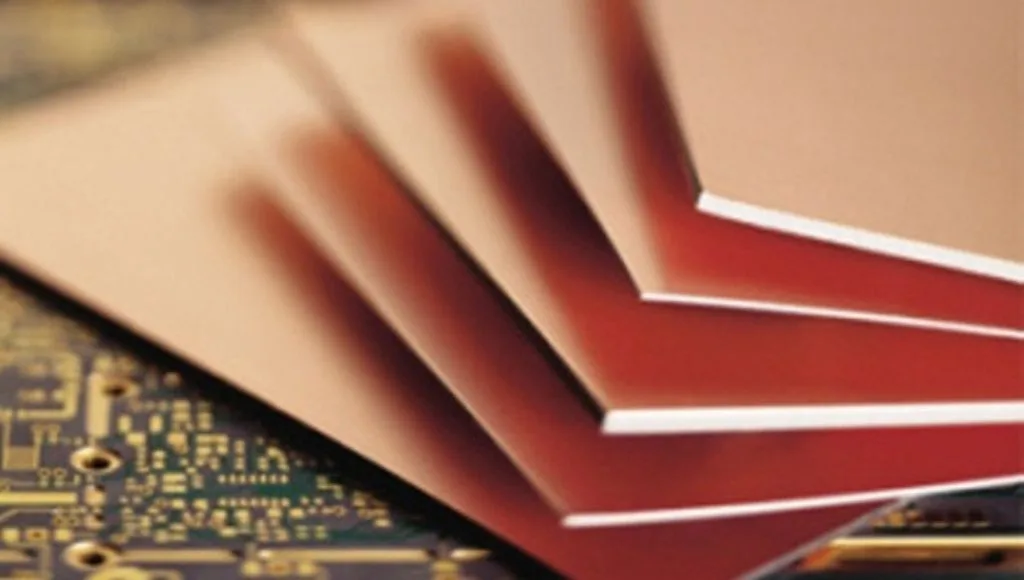

FR-4 PCB Material
FR-4 PCB Material

Dielectric Properties of LED PCB Materials

The dielectric properties of the materials used for LED PCB also require careful consideration, as they impact electrical performance and functionality. Key dielectric properties to evaluate include:

  • Dielectric constant – This affects impedance control and signal propagation speed. Materials with a stable and consistent dielectric constant are preferred.
  • Dissipation factor – A measure of dielectric losses in the material. A lower dissipation factor means better signal integrity.
  • Dielectric strength – The maximum electric field strength the material can withstand without breakdown. Higher is better for insulating boards.

FR4 glass epoxy is the most common and cost-effective laminate used for LED PCBs. It provides reasonable dielectric performance for many LED applications. However, for high-frequency or high-speed LED circuits, specialized materials may be preferred, such as:

  • PTFE (Teflon) – Extremely low dielectric loss, allowing high-frequency operation. Expensive option.
  • Low-loss thermoset laminates – Composite materials engineered for tighter dielectric constant tolerances.
  • Ceramic PCBs – Alumina or aluminum nitride has excellent dielectric properties but also high cost.

Proper dielectric performance prevents signal loss, crosstalk, or EMI problems. This helps ensure the LEDs switch on/off reliably and avoids aberrations in the light output. Selecting PCB materials with suitable dielectric properties enhances the electrical functionality of LED circuits.

Aluminum LED PCB Board
Aluminum LED PCB Board

Manufacturability of LED PCB Materials

In addition to thermal and dielectric properties, the manufacturability of different PCB materials should be considered for LED applications. Some key factors that impact manufacturability and fabrication processes include:

  • Substrate thickness – Thicker PCBs can improve thermal performance but may be harder to manufacture, especially for multilayer boards. Standard 1.6mm FR4 is commonly used.
  • Layer count – More layers may be needed for complex LED circuitry but this can reduce manufacturability. 2-8 layers are typical.
  • Halogen content – Materials with halogens like bromine and chlorine can produce corrosive byproducts when heated. Low halogen or halogen-free materials improve manufacturability.
  • Environmental regulations – Materials must meet standards like RoHS compliance for electronics manufacturing.
  • Fabrication process – Standard FR4 boards are compatible with widely available PCB production processes. More exotic materials like ceramics and metal core boards need special fabrication equipment.

Carefully evaluating manufacturability ensures the LED PCB can be fabricated reliably within budget. This helps control costs for high-volume production. FR4 glass epoxy is the most common choice since its well suited for standard PCB manufacturing processes. Metal core and ceramic boards offer enhanced thermal and electrical performance but come at a higher cost and production complexity.

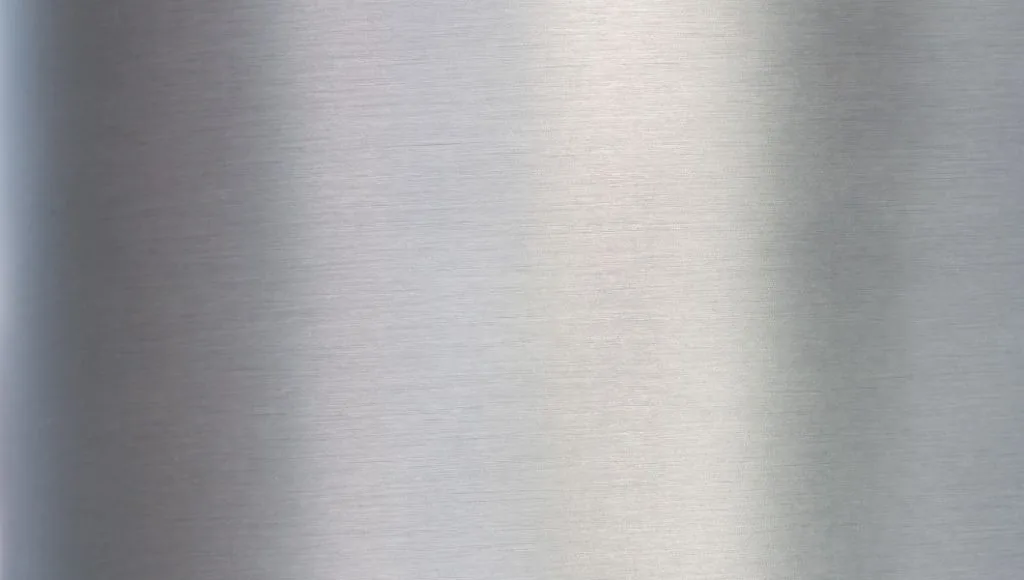

Aluminum for LED PCB Fabrication
Aluminum for LED PCB Fabrication

Cost Analysis of LED PCB Materials

When selecting materials for LED PCB, the cost is always an important consideration along with technical performance and manufacturability. Here are some key factors to analyze regarding PCB material costs:

  • Base material cost – Basic FR4 glass epoxy is the least expensive option. Other materials like ceramics and composites have inherently higher raw material expenses.
  • Complexity – More exotic PCB materials often require additional processing steps, layers, or structural elements that increase cost.
  • Volume – High volume production helps amortize setup costs and capital equipment. Smaller volumes have higher per-unit costs.
  • Customization – Special thermal or electrical requirements that deviate from standard materials and processes will increase the cost.
  • Testing and qualification – New custom materials may require extensive testing to verify acceptability for LED applications, adding time and cost.
  • Reliability factors – Some high-performance materials reduce long-term costs by extending LED lifetime through improved heat dissipation.

There are always cost tradeoffs involved when using exotic, high-performance PCB materials. The improved thermal and dielectric properties may justify the increased expenses for critical LED applications. But for cost-sensitive applications, standard FR4 glass epoxy is often the best economic choice.

Carefully weigh the cost increases against performance benefits and manufacturing considerations when selecting LED PCB materials. Contact us for a cost comparison and recommendation for your specific application.

LED PCB Applications
LED PCB Applications


The selection of PCB materials for LED applications is critical to ensure proper electrical and thermal performance. Key factors to consider include:

  • Thermal conductivity to effectively dissipate heat away from the LEDs
  • Dielectric properties to maintain signal integrity and reliability
  • Manufacturability with standard PCB production processes
  • Cost tradeoffs between performance and expenses

By thoughtfully evaluating PCB materials based on these criteria, LED functionality, lifetime, and cost can be optimized. FR4 glass epoxy is the most common and cost-effective option suitable for many applications. For demanding high-speed or high-power LED uses, more advanced materials like ceramic PCBs or metal core boards may be justified despite their increased cost.

There are always tradeoffs to weigh when choosing PCB materials for LEDs. Work with an experienced PCB manufacturer to select the right material for your specific application requirements and constraints. Proper LED PCB material selection provides a critical foundation for building durable, high-performing LED luminaries and displays.
