High Quality Rapid Aluminum PCB Prototyping Services for Efficient Thermal Management

Need high-performance aluminum PCBs with superior thermal management for your cutting-edge electronics? JHYPCB’s rapid aluminum PCB prototyping services provide the solution. Our advanced capabilities allow us to quickly produce high-quality aluminum PCB prototypes tailored to your designs, be it single-layer, double-sided, multilayer, hybrid or even flexible aluminum boards. Leveraging premium materials and state-of-the-art equipment, we ensure efficient heat dissipation, mechanical robustness and reliability – critical for power electronics, LED lighting, automotive, aerospace and other demanding applications. With fast turnarounds and rigorous testing, we accelerate your time-to-market while maintaining stringent quality standards. Partner with our experienced team to bring your innovative aluminum PCB designs to life through a seamless prototyping experience.

What is Aluminum PCB?

An aluminum PCB is a type of metal-core PCB that uses a base metal of aluminum as the substrate instead of the traditional FR4 material. Aluminum PCBs have a thin layer of dielectric material that insulates a copper foil layer, and the metal substrate provides heat dissipation, making them suitable for high-power LED lighting, power supplies, and other applications that require efficient heat transfer. Aluminum PCBs are also lightweight and durable, making them a popular choice for many electronic products.

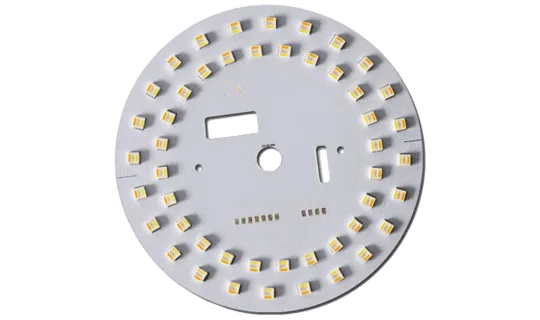

Aluminum PCB Prototyping

Advantages and applications of aluminum PCBs

Aluminum PCBs have become increasingly popular in recent years due to their unique advantages and applications. Compared to traditional FR4 PCBs, aluminum PCBs offer improved thermal management and durability, making them ideal for high-power LED lighting, automotive electronics, power supplies, computer hardware, and telecommunications.

Advantages of aluminum PCBs:

  1. Excellent thermal conductivity
    Aluminum PCBs have a high thermal conductivity, allowing them to effectively dissipate heat and cool components, which is essential for high-power electronic devices.

  2. Durability
    Aluminum PCBs are durable and resistant to mechanical and thermal stresses, which makes them ideal for harsh environments.

  3. Lightweight
    Aluminum PCBs are lightweight and compact, which is essential for portable electronic devices.

  4. Improved performance
    Aluminum PCBs can provide improved performance due to their efficient heat dissipation, which can reduce component failure rates and extend their lifespan.

  5. Reduced electromagnetic interference (EMI)
    Aluminum PCBs can reduce EMI, which can improve the performance and reliability of electronic products.

Applications of aluminum PCBs:

  1. LED lighting
    Aluminum PCBs are widely used in high-power LED lighting applications because of their ability to efficiently dissipate heat, extend the lifespan of LED lights, and improve their performance.

  2. Power supplies
    Aluminum PCBs are commonly used in power supply units, where they can handle high currents and efficiently dissipate heat.

  3. Automotive electronics
    Aluminum PCBs are ideal for automotive applications because of their durability and ability to withstand high temperatures.

  4. Computer hardware
    Aluminum PCBs are used in computer hardware components, such as CPU heat sinks, to improve thermal management and reduce the risk of component failure.

  5. Telecommunications
    Aluminum PCBs are used in telecommunication equipment because of their high reliability, durability, and efficient heat dissipation.

Value and Benefits of Aluminum PCB Prototyping Services

Aluminum PCB prototyping services offer a range of benefits and value to customers.

Fast production time

Aluminum PCB prototyping services can produce aluminum PCB prototypes quickly, allowing customers to test and refine their designs faster and bring products to market sooner.

Cost-effective

Aluminum PCB prototyping services are cost-effective compared to traditional manufacturing methods, as they allow customers to produce small batches of PCBs without the need for expensive tooling or equipment.

High-quality production

Aluminum PCB prototyping services use advanced equipment and experienced technicians to ensure high-quality production of PCB prototypes that meet customer specifications.

Customizable

Aluminum PCB prototyping services can produce customized aluminum PCB prototypes to meet specific customer needs, including size, shape, and material specifications.

mproved product design

Aluminum PCB prototyping services can help improve the design of electronic products by allowing customers to test and refine their designs before full-scale production.

Aluminum PCB Prototyping Process

The aluminum PCB prototyping process involves several steps that ensure the production of high-quality aluminum PCB prototypes. Here are the typical steps involved in the process:

  1. Design and Gerber file creation: The process starts with the creation of the design and the Gerber files for the aluminum PCB. This involves using software to create the PCB layout and generate the files that the manufacturer will use to produce the PCB.

  2. Material selection: The next step is to select the right materials for the PCB, including the aluminum substrate, the copper layer, and the dielectric layer. The choice of materials will depend on the specifications of the design and the requirements of the application.

  3. Production of the PCB: The manufacturer will use the Gerber files to produce the aluminum PCB prototype using advanced equipment and techniques. The process may include techniques such as drilling, routing, and etching to create the required PCB layout.

  4. Solder mask and silkscreen printing: Once the PCB is produced, a solder mask may be applied to protect the PCB during soldering. Silkscreen printing may also be applied to add labels and graphics to the PCB.

  5. Testing and inspection: The final step in the process is to test and inspect the aluminum PCB prototype to ensure it meets the design specifications and quality standards. This may include electrical testing, visual inspection, and performance testing.

The aluminum PCB prototyping process involves several critical steps that must be performed accurately and efficiently to produce high-quality PCB prototypes. By working with an experienced aluminum PCB prototyping service provider, customers can ensure that their designs are produced to the highest standards of quality and performance.

Aluminum PCB Prototyping Service By JHYPCB

At JHYPCB, we offer high-quality aluminum PCB prototyping services, including single-layer aluminum PCB, double-sided aluminum PCB, multilayer aluminum PCB, hybrid aluminum PCB, and flexible aluminum PCB to customers in a variety of industries. Our services are designed to meet the needs of customers who require fast, reliable, and cost-effective production of customized aluminum PCB prototypes. Here are some of the key features of our aluminum PCB prototyping service:

  1. Advanced equipment and technology
    We use the latest equipment and technology to ensure the highest quality production of aluminum PCB prototypes. This includes advanced drilling and routing machines, high-precision imaging equipment, and automated production processes.

  2. Customized solutions
    We offer customized solutions to meet the specific needs of each customer. This includes custom sizes, shapes, and materials for the aluminum substrate, copper layer, and dielectric layer.

  3. Fast turnaround time
    We offer fast turnaround times for aluminum PCB prototyping, with the ability to produce prototypes in as little as 24 hours.

  4. Experienced technicians
    Our team of experienced technicians has the skills and expertise to ensure that each aluminum PCB prototype is produced to the highest standards of quality and performance.

  5. Rigorous testing and inspection
    We perform rigorous testing and inspection of each aluminum PCB prototype to ensure that it meets the design specifications and quality standards of the customer.

By working with our company for aluminum PCB prototyping services, customers can benefit from fast, reliable, and cost-effective production of high-quality prototypes that meet their specific requirements. Our commitment to quality, customer service, and customization ensures that we provide the best possible solutions for our customers’ aluminum PCB prototyping needs.

Frequently Asked Questions About Aluminum PCB Prototyping

An aluminum PCB is a type of printed circuit board that uses an aluminum substrate instead of a traditional fiberglass substrate. The aluminum substrate provides better heat dissipation and mechanical stability, making it ideal for high-power and high-reliability applications.

Aluminum PCB prototyping offers a range of benefits, including improved thermal performance, mechanical stability, and durability. It also allows for customized designs and faster prototyping times, which can help companies reduce time to market and improve product performance.

Industries such as automotive, aerospace, medical, and industrial can all benefit from aluminum PCB prototyping due to the high power and reliability requirements of their applications.

he turnaround time for aluminum PCB prototyping can vary depending on the complexity of the design and the quantity of the order. However, most companies can produce aluminum PCB prototypes in as little as 24 to 48 hours.

Aluminum PCB prototyping differs from traditional PCB prototyping in that it uses an aluminum substrate instead of a fiberglass substrate. This provides improved heat dissipation and mechanical stability, making it ideal for high-power and high-reliability applications.
