Multilayer Flex PCB: Design, Manufacturing and Applications

Looking for multilayer Flexible PCB manufacturing services? We provide high-quality and cost-effective solutions for your flexible PCB needs. Contact us today!

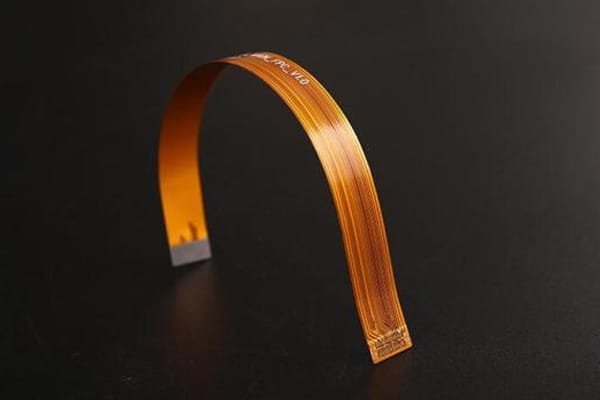

What is Multilayer Flex PCB?

Multilayer flexible PCBs are electronic circuits that consist of multiple layers of flexible material, such as polyimide or polyester, with conductive traces etched onto them. These layers are stacked and bonded together with adhesive or heat, and the result is a thin, lightweight, and flexible board that can be bent, twisted or folded to fit into tight spaces or irregular shapes.

Multilayer Flex PCB Stack up and Structure.

Multilayer flexible PCBs typically have at least three layers, with additional layers added to increase the complexity of the circuit. Depending on the device’s requirements, the layers can range from two to over ten. The layers are usually interconnected by vias, which are small holes drilled through the layers and filled with conductive material to allow for electrical connections between the layers.

Get a Quick Quote

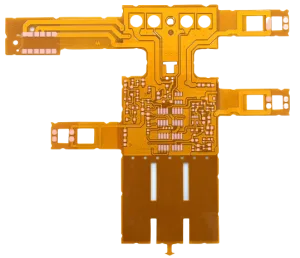

Multilayer Flex PCB

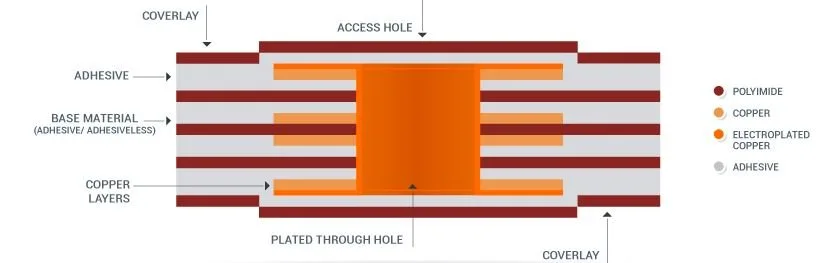

Structure of Multilayer Flexible PCB
Structure of Multilayer Flexible PCB

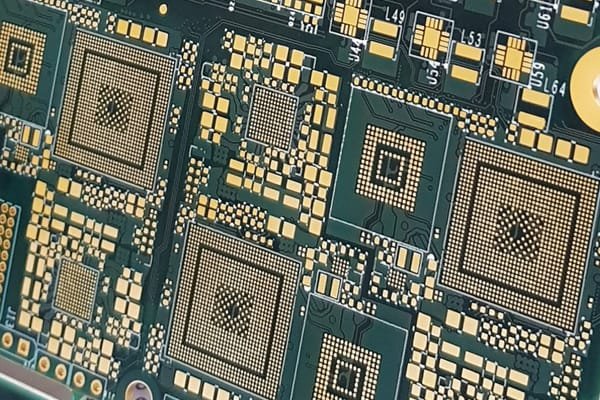

What is Multilayer PCB?

Concept and Advantages of Multilayer PCB

A multilayer PCB is an electronic circuit board with two or more layers of electrical connections. These layers are stacked with alternating copper foils and dielectric materials, and interconnected through vias. These vias can be connected through various methods such as electroplating, chemical deposition, etc.

Multilayer PCBs have the following advantages:

  1. Higher integration: Compared to single layer or double-sided boards, multilayer PCBs allow for more electrical connections, enabling more complex circuit designs and higher integration.

  2. Better electrical performance: Multilayer PCBs can provide better electrical performance, such as lower crosstalk, better electromagnetic compatibility, etc., thereby improving circuit reliability and performance.

  3. Smaller size and weight: Multilayer PCBs can reduce the size and weight of the circuit board by integrating circuits together, saving space and improving the mobility and portability of the device.

  4. Better thermal performance: Multilayer PCBs allow for placing power and ground layers in different layers, providing better thermal performance and heat management capabilities.

  5. Higher reliability: Multilayer PCBs can provide better circuit protection and anti-interference capabilities, thereby improving circuit reliability and stability.

What is Flexible PCB?

Concept and Advantages of Flexible PCB

A flexible PCB, also known as a flexible printed circuit or FPC, is an electronic circuit board that is made of flexible materials such as polyimide or polyester film. The circuits are etched onto the flexible material, and the result is a thin, lightweight, and flexible board that can be bent, twisted, or folded to fit into tight spaces or irregular shapes.

Flexible PCBs have the following advantages:

  1. Space-saving design: Flexible PCBs can be designed to fit into tight or irregular spaces, which can save valuable space in electronic devices.

  2. Weight reduction: Flexible PCBs are lightweight and thin, which can reduce the overall weight of the device.

  3. Higher reliability: Flexible PCBs are less prone to mechanical stress, vibration, and thermal expansion than rigid PCBs, resulting in higher reliability.

  4. Ease of installation: Flexible PCBs can be easily installed and integrated into electronic devices, which can save time and money.

  5. Improved signal quality: Flexible PCBs can provide better signal quality due to reduced crosstalk and interference.

  6. Cost-effective: Flexible PCBs can be produced in large quantities using automated manufacturing processes, which can reduce production costs.

Multilayer Flex PCB Benefits

Advantages of Multilayer Flex PCB

A multilayer flex PCB combines the advantages of both multilayer PCB and flexible PCB. It is a flexible printed circuit board with two or more layers of electrical connections, which are made of flexible materials such as polyimide or polyester film. The circuits are etched onto the flexible material and interconnected through vias. Multilayer flex PCBs offer several advantages over traditional rigid PCBs, including:

  1. High flexibility: Multilayer flex PCBs are extremely flexible and can be bent, twisted, or folded to fit into tight spaces or irregular shapes, making them ideal for use in curved or flexible electronic devices.

  2. High-density interconnections: Multilayer flex PCBs can provide high-density interconnections, which allow for more complex circuit designs and higher integration.

  3. Reduced size and weight: Multilayer flex PCBs can reduce the size and weight of electronic devices, which is especially important for portable and handheld devices.

  4. Improved signal quality: Multilayer flex PCBs can provide better signal quality due to reduced crosstalk and interference.

  5. Increased reliability: Multilayer flex PCBs are less prone to mechanical stress, vibration, and thermal expansion than rigid PCBs, resulting in higher reliability.

  6. Cost-effective: Multilayer flex PCBs can be produced in large quantities using automated manufacturing processes, which can reduce production costs.

Design and Manufacturing of Multilayer Flex PCB

Multilayer flexible PCBs are a type of PCB that contains multiple layers of flexible circuits, which are interconnected by vias. They are widely used in various electronic devices that require compact and lightweight circuitry, such as smartphones, wearables, and medical devices. Here is an overview of the design and manufacturing process for multilayer flexible PCBs:

Design Process and Considerations:

  1. Determine the required number of layers: The number of layers required in a multilayer flexible PCB depends on the complexity of the circuit and the density of the components.

  2. Select the substrate material: Flexible PCBs are typically made from polyimide or polyester films. Polyimide is preferred for its excellent thermal and mechanical properties, while polyester is a more affordable option.

  3. Determine the routing and placement of components: The routing and placement of components are crucial in multilayer flexible PCBs because the circuits must be able to bend and flex without breaking. Therefore, it is important to avoid sharp angles and tight bends.

  4. Add vias: Vias are used to connect the different layers of the PCB. It is important to consider the size and spacing of the vias to ensure proper connectivity and avoid signal interference.

  5. Design the trace width and spacing: The trace width and spacing must be carefully designed to ensure that the PCB can handle the required current and voltage levels.

Manufacturing Process and Technical Considerations:

  1. Cutting the substrate material: The substrate material is cut to the desired size and shape using a laser or a mechanical cutting tool.

  2. Printing the circuitry: The circuitry is printed onto the substrate using a process called photolithography. This involves applying a layer of photoresist to the substrate, exposing it to UV light through a mask, and then etching away the unexposed areas.

  3. Plating the vias: Vias are plated with copper to create a conductive path between the layers of the PCB.

  4. Laminating the layers: The layers of the PCB are laminated together using an adhesive material. This creates a flexible and durable multilayer PCB.

  5. Drilling and routing: Holes are drilled through the PCB to create openings for the components. The PCB is then routed to remove excess material and create the desired shape.

  6. Applying surface finish: The surface of the PCB is coated with a layer of metal to protect the circuitry from oxidation and improve solderability.

  7. Testing and inspection: The PCB is tested for electrical connectivity and inspected for any defects before being shipped to the customer.

Some technical considerations to keep in mind during the manufacturing process include:

  1. Controlling the thickness of the substrate and the adhesive material to ensure that the PCB can bend and flex without breaking.

  2. Ensuring that the vias are properly plated and connected to the appropriate layers of the PCB.

  3. Using specialized equipment and techniques to drill small holes and create precise routing patterns.

  4. Maintaining a clean and controlled environment to prevent contamination and defects in the circuitry.

Overall, designing and manufacturing multilayer flexible PCBs requires careful attention to detail and specialized equipment and techniques. However, they offer significant benefits in terms of space savings, weight reduction, and flexibility compared to traditional rigid PCBs.

Applications

Applications Of Multilayer Flex PCB

Multilayer flexible PCBs have many applications across various industries due to their unique features and benefits. Here are some examples:

Consumer electronics

Multilayer flex PCBs are commonly used in smartphones, tablets, and wearables because they can fit in small and curved spaces. They offer flexibility and durability, making them ideal for devices that require frequent bending and twisting.

Medical devices

Multilayer flex PCBs are used in medical devices such as pacemakers, insulin pumps, and implantable sensors. They are biocompatible, lightweight, and can be customized to fit the unique shape of each device.

Aerospace and defense

Multilayer flex PCBs are used in aerospace and defense applications due to their resistance to shock and vibration, as well as their ability to withstand extreme temperatures and harsh environments. They are used in radar systems, avionics, and communication equipment.

Automotive

Multilayer flex PCBs are used in automotive applications such as electronic control units (ECUs), sensors, and displays. They can withstand the high temperatures and vibration of the engine compartment and offer space-saving advantages over traditional rigid PCBs.

Industrial equipment

Multilayer flex PCBs are used in industrial equipment such as control systems, sensors, and robotics. They can be customized to fit the unique shape of each application and offer reliability and durability in harsh environments.

Multilayer Flex PCB Manufacturing Service

As a professional multilayer flex PCB manufacturer, we provide high-quality single-sided, double-sided, and multi-layer PCB manufacturing services. Our team consists of experienced professionals with the latest production equipment and technology to provide fast, accurate, and reliable manufacturing solutions to our customers. Our products are widely used in the medical, communication, industrial control, automotive, and aerospace industries.

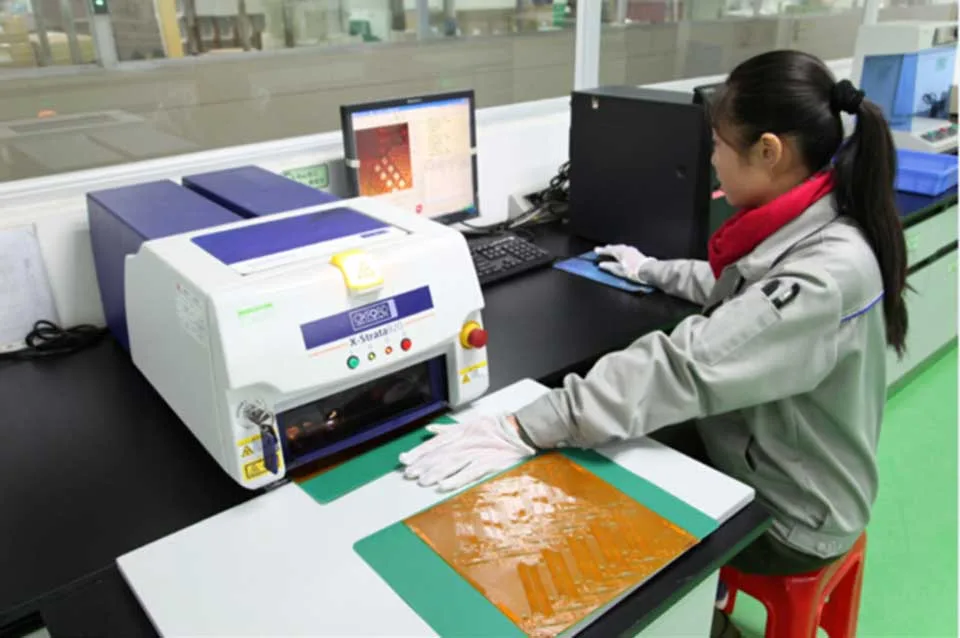

Flexible PCB Manufacturing Service

Why Choose Us

  1. Experience: We have an experienced professional team that provides full-service from design to manufacturing to ensure that our customers receive the best possible solutions.
  2. High Quality: We use the latest equipment and technology, along with high-quality materials, to ensure that each product meets our customers’ requirements.
  3. Flexibility: We can provide various customized solutions according to customer needs, including different materials, thicknesses, and layers, etc.
  4. Competitive pricing: We provide competitive pricing while ensuring product quality and delivery, providing cost-effective services to our customers.
  5. Reliability: We always focus on customer satisfaction, guaranteeing on-time delivery and stable quality through continuously improving production efficiency and quality control.

multilayer Flex PCB Fabrication Capability

As a multilayer flex PCB manufacturer, our fabrication capability includes the following:

  1. Layer count: We can manufacture PCBs with up to 12 layers or more, depending on customer requirements.

  2. Materials: We offer a wide range of materials for our multilayer flex PCBs, including polyimide, PET, and other specialized materials.

  3. Copper weight: We can provide PCBs with copper weights ranging from 0.5 oz to 3 oz, depending on customer requirements.

  4. Minimum line width and spacing: Our minimum line width and spacing can be as small as 0.075mm/0.075mm, depending on the complexity of the design.

  5. Surface finish: We offer a variety of surface finishes, including ENIG, OSP, HASL, and immersion silver, to meet different customer requirements.

  6. Impedance control: We have the ability to fabricate multilayer flex PCBs with precise impedance control to ensure high-speed signal transmission.

  7. Solder mask: We offer different colors of solder mask, including green, red, blue, black, white, and yellow, to meet different customer requirements.

  8. Testing: We perform electrical testing, including flying probe and test fixtures, to ensure the quality and reliability of our products.

Overall, our multilayer flex PCB fabrication capability is designed to meet the diverse needs of our customers, delivering high-quality, reliable, and cost-effective solutions.

FAQs of Multilayer Flex PCB

A multilayer flex PCB is a type of flexible circuit board that has multiple layers of conductive traces separated by insulating materials. It allows for greater design flexibility and packing density than single or double-sided flexible PCBs.

The advantages of using multilayer flex PCBs include higher packing density, reduced size and weight, improved signal integrity, and increased reliability.

Multilayer flex PCBs are widely used in various industries, including medical, communication, industrial control, automotive, and aerospace, for applications such as sensors, connectors, antennas, and power supplies.

Multilayer flex PCBs are manufactured using a combination of additive and subtractive processes. The process includes layer lamination, imaging, etching, plating, drilling, and final finishing.

The most commonly used materials for multilayer flex PCBs are polyimide and PET, although other materials such as PEEK and PEN may also be used depending on the specific application requirements.

The maximum layer count for multilayer flex PCBs can vary depending on the manufacturer's capabilities and the specific design requirements. At our company, we can manufacture multilayer flex PCBs with up to 12 layers or more.

The minimum line width and spacing for multilayer flex PCBs can vary depending on the manufacturer's capabilities and the specific design requirements. At our company, we can provide a minimum line width and spacing of 0.075mm/0.075mm.

Electrical testing, including flying probe and test fixtures, is performed on multilayer flex PCBs to ensure quality and reliability.

Yes, multilayer flex PCBs can be customized to meet specific design requirements, including layer count, materials, copper weight, surface finish, impedance control, solder mask color, and more.

The lead time for multilayer flex PCBs can vary depending on the specific requirements of the project. At our company, we offer fast turnaround times and work closely with our customers to meet their delivery needs.
