Material selection and performance of multilayer PCBs: how to balance cost and performance

Material selection and performance of multilayer PCBs

Multi-layer PCBs have become increasingly popular in recent years because they offer better signal integrity, power integrity, and thermal management than their single or double-layer counterparts. However, choosing the right materials and balancing performance and cost is critical to multi-layer PCB design. This article will explore the materials used for multi-layer PCBs, performance considerations, and strategies for balancing cost and performance in material selection.

What is multilayer printed circuit board?

A multilayer printed circuit board is a type of PCB consisting of multiple layers of conductive traces and insulating materials stacked on each other. These layers are held together by a bonding material and are connected by plated-through holes, which allow electrical signals to pass through from one layer to another.

Multilayer PCBs are used in various electronic devices, from simple consumer electronics to complex aerospace and defense systems. They offer several advantages over single or double-layer PCBs, including higher circuit density, better signal integrity, power integrity, and thermal management.

Multilayer PCBs are designed using specialized software and require high expertise to manufacture. The manufacturing process involves several steps, including drilling holes in each layer, plating the holes with copper, and laminating the layers together under heat and pressure.

The number of layers in a multilayer PCB can range from 4 to more than 50, depending on the complexity of the circuit design and the required performance specifications. Designers must carefully select the materials used in each layer to ensure that the PCB meets the required performance criteria while balancing cost and performance.

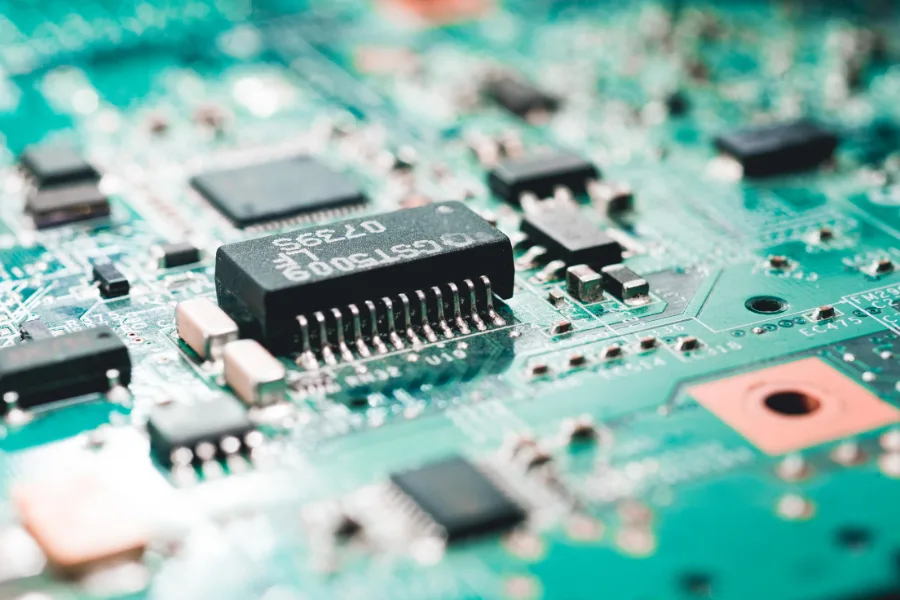

Multilayer PCB

Materials for multi-layer PCBs

Several materials are used for multi-layer PCBs, but FR-4, Rogers, and Isola are the most common ones.

  1. FR-4: FR-4 is the most widely used material for multi-layer PCBs. It is a composite material consisting of woven glass fiber and an epoxy resin binder. FR-4 has good mechanical strength, excellent electrical insulation properties, and is resistant to moisture and chemicals. It is also relatively low cost compared to other materials used for multi-layer PCBs. FR-4 is suitable for most PCB applications that do not require high-frequency performance.

    Properties of FR-4:

    • Dielectric constant: 4.5 to 5.5
    • Thermal conductivity: 0.3 to 0.4 W/mK
    • Cost: Relatively low compared to other materials
    • Other properties: Good mechanical strength, excellent electrical insulation properties, and resistance to moisture and chemicals.
  2. Rogers: Rogers materials are a family of high-performance substrates made from ceramic-filled PTFE (Polytetrafluoroethylene) materials. They offer excellent electrical performance with high frequency and low loss characteristics. Rogers materials have a low dielectric constant, which reduces signal loss, and a low dissipation factor, which reduces power loss. Rogers materials are expensive compared to FR-4 but suitable for high-frequency applications, such as RF (Radio Frequency) and microwave circuits.

    Properties of Rogers:

    • Dielectric constant: 2.2 to 10.2
    • Thermal conductivity: 0.24 to 0.96 W/mK
    • Cost: Expensive compared to FR-4
    • Other properties: Excellent electrical performance with high frequency and low loss characteristics, low dielectric constant reducing signal loss, low dissipation factor reducing power loss.
  3. Isola: Isola materials are composite materials that balance cost and performance. They are made from woven glass fiber and epoxy resin, similar to FR-4, but with a higher glass transition temperature (Tg) and improved electrical properties. Isola materials are suitable for high-speed digital and analog circuits requiring good signal and power integrity. They are also cheaper than Rogers materials, making them popular for many multi-layer PCB designs.

    Properties of Isola:

    • Dielectric constant: 3.5 to 4.0
    • Thermal conductivity: 0.3 to 0.5 W/mK
    • Cost: Lower than Rogers, but more expensive than FR-4
    • Other properties: Higher glass transition temperature (Tg) and improved electrical properties compared to FR-4.

Other materials used for multi-layer PCBs include ceramic-based materials, metal-based materials, and other high-performance polymer-based materials. These materials are more expensive and are generally used for specific applications that require very high performance or extreme environmental conditions.

Properties of Ceramic-based materials:

  • Dielectric constant: 6.5 to 9.8
  • Thermal conductivity: 10 to 180 W/mK
  • Cost: Expensive compared to other materials
  • Other properties: Excellent thermal conductivity, low dielectric loss, high mechanical strength, and resistance to high temperatures.

Properties of Ceramic-based materials:

  • Dielectric constant: 3.0 to 5.5
  • Thermal conductivity: 0.3 to 1.5 W/mK
  • Cost: Expensive compared to other materials
  • Other properties: High thermal conductivity, mechanical strength, and resistance to electromagnetic interference.

In summary, selecting the right material for a multi-layer PCB depends on the required performance specifications, such as signal integrity, power integrity, thermal management, and cost considerations. Designers must carefully evaluate the trade-offs between material performance and cost and optimize material selection to achieve the required performance while keeping costs within budget.

Performance considerations for multi-layer PCBs

There are several performance considerations to keep in mind when designing multi-layer PCBs, including:

  1. Signal Integrity: Signal integrity refers to the ability of the PCB to transmit signals without distortion or loss. In multi-layer PCBs, signal integrity can be affected by several factors, such as impedance mismatches, crosstalk, and noise. To ensure good signal integrity, designers must carefully select materials with the appropriate dielectric constant and low-loss tangent, ensure proper signal routing, and control the impedance of signal traces.

  2. Power Integrity: Power integrity refers to the ability of the PCB to distribute power without voltage drops or noise. In multi-layer PCBs, power integrity can be affected by several factors, such as voltage drop, ground bounce, and power noise. To ensure good power integrity, designers must carefully control the power distribution network, minimize the impedance of power traces, and ensure proper decoupling capacitor placement.

  3. Thermal Management: Thermal management refers to the ability of the PCB to dissipate heat generated by electronic components. Thermal management can be challenging in multi-layer PCBs due to the high component density and limited space. To ensure good thermal management, designers must carefully select materials with high thermal conductivity, ensure proper heat sink placement, and design adequate thermal vias to transfer heat from the component to the outer layers of the PCB.

  4. Manufacturing Yield: Manufacturing yield refers to the ability of the PCB to be manufactured without defects. In multi-layer PCBs, manufacturing yield can be affected by several factors, such as alignment errors, drill bit breakage, and lamination defects. To ensure good manufacturing yield, designers must carefully select materials compatible with the PCB manufacturing process, ensure proper layer alignment, and design the PCB with the manufacturing process in mind.

  5. Cost: Cost is always a consideration when designing multi-layer PCBs. Selecting the right materials and optimizing the design for manufacturability can help keep costs within budget. Designers must also consider the cost of testing and validating the PCB to ensure it meets the required performance specifications.

In summary, designing multi-layer PCBs requires careful consideration of several performance factors, such as signal integrity, power integrity, thermal management, manufacturing yield, and cost. Designers must optimize the design to achieve the required performance while keeping costs within budget and ensuring manufacturability.

Importance of balancing cost and performance

Balancing cost and performance is critical when designing multi-layer PCBs. While using the most expensive and highest-performing materials may be tempting, this approach can quickly drive up costs and make the PCB impractical for mass production. On the other hand, using low-cost materials may result in a PCB that does not meet the required performance specifications.

Here are some reasons why balancing cost and performance is important when designing multi-layer PCBs:

  1. Cost-effective production: Designing a PCB with cost-effective materials can significantly reduce the production cost. Choosing the right materials based on performance requirements can ensure the design remains within budget and is viable for mass production.

  2. Competitive pricing: Cost-effective design enables companies to offer competitive product pricing. By optimizing the cost-performance ratio, companies can offer high-quality products that meet performance requirements at competitive prices.

  3. Return on investment (ROI): Balancing cost and performance also affects the return. If the design is over-engineered, the company may not recover the initial product investment, which could lead to losses. On the other hand, if the product does not meet the performance requirements, it could lose sales and brand reputation.

  4. Customer satisfaction: Customer satisfaction is a key factor in any business. A product that performs well but is too expensive may not attract customers, while a product that is affordable but does not meet the performance requirements will disappoint customers. Balancing cost and performance can lead to a product that satisfies customer needs and budget constraints.

  5. Sustainability: Balancing cost and performance also has implications for sustainability. Using expensive or hard-to-recycle materials can lead to environmental concerns, whereas using cost-effective and recyclable materials can promote sustainability.

Balancing cost and performance in material selection

Balancing cost and performance in material selection is a critical step in designing multi-layer PCBs. Here are some factors to consider when trying to strike the right balance between cost and performance:

  1. Performance requirements: The first step in balancing cost and performance is to clearly define the performance requirements for the PCB. This includes signal integrity, power integrity, thermal management, and manufacturing yield. Once the performance requirements are clearly defined, designers can evaluate different materials based on their characteristics.

  2. Material options: Various material options are available for multi-layer PCBs, ranging from low-cost materials like FR-4 to high-performance materials like PTFE. Evaluating the different material options based on their performance characteristics and cost can help identify the most cost-effective material for the application.

  3. Material properties: Different materials have different properties that affect their performance and cost. For example, materials with higher thermal conductivity are better for thermal management but are usually more expensive. Similarly, materials with lower dielectric constant and low loss tangents are better for signal integrity but are usually more expensive. Evaluating the properties of different materials based on their impact on performance and cost can help identify the optimal material for the given application.

  4. Trade-offs: Balancing cost and performance often involves trade-offs between different factors. For example, using a higher-performance material may result in better signal integrity but may be more expensive. On the other hand, using a lower-cost material may result in lower signal integrity but may be more cost-effective. Identifying the trade-offs between different factors can help designers make informed decisions when selecting materials.

  5. Manufacturing process: The manufacturing process also affects the cost of the PCB. Some materials may be more difficult to manufacture, resulting in higher costs. Evaluating the compatibility of different materials with the manufacturing process can help identify the most cost-effective material for the given application.

Case study: Balancing cost and performance in multi-layer PCB design

Consider a case study demonstrating how balancing cost and performance can be applied in multi-layer PCB design.

A manufacturer is developing a new networking device that requires a multi-layer PCB. The device must meet high-speed signal transmission and thermal management requirements while remaining cost-effective for mass production.

To achieve high-speed signal transmission, the manufacturer is considering using a high-performance material like PTFE or Rogers, which have low dielectric constant and low loss tangent. However, these materials are expensive and may not be cost-effective for mass production.

Alternatively, the manufacturer is considering using a low-cost material like FR-4, which has a higher dielectric constant and loss tangent but is more cost-effective. However, using FR-4 may compromise signal integrity and result in lower performance.

The manufacturer evaluates different material options based on their performance characteristics and cost to balance cost and performance. After considering the trade-offs between different factors, the manufacturer decides to use a hybrid material combining the benefits of PTFE and FR-4.

The hybrid material has a lower dielectric constant and loss tangent than FR-4, which improves signal integrity and meets the high-speed signal transmission requirements. At the same time, the hybrid material is less expensive than PTFE, making it cost-effective for mass production.

The manufacturer also considers the manufacturing process and compatibility of the hybrid material with the process. The hybrid material is compatible with the manufacturing process, ensuring a smooth production process without any issues.

The final PCB design is a multi-layer PCB that uses a hybrid material, which strikes the right balance between cost and performance. The PCB meets the high-speed signal transmission and thermal management requirements while remaining cost-effective for mass production. By balancing cost and performance, the manufacturer can offer competitive pricing for the networking device, achieving the desired ROI and satisfying customer needs.

The case study demonstrates how balancing cost and performance in multi-layer PCB design can help manufacturers produce high-quality products that meet performance requirements at an affordable cost. By evaluating different material options based on their performance characteristics, properties, trade-offs, and compatibility with the manufacturing process, manufacturers can identify the optimal material for the given application and produce a cost-effective multi-layer PCB that meets the desired performance specifications.

Conclusion

In conclusion, multi-layer PCBs are critical components in modern electronics, providing essential functionality for devices ranging from smartphones to satellites. Selecting the right materials for multi-layer PCBs is a complex process that requires balancing performance requirements and cost considerations.

By balancing cost and performance considerations, designers and manufacturers can produce high-quality multi-layer PCBs that meet performance requirements at an affordable cost, enabling the development of cutting-edge electronic devices.
