What is Multilayer Aluminum PCB?

Multilayer Aluminum PCB is a type of aluminum printed circuit board that consists of multiple layers of aluminum circuitry separated by insulating layers, typically made of prepreg or polyimide. It offers a number of advantages, such as high thermal conductivity, excellent heat dissipation, low thermal expansion coefficient, and good electromagnetic shielding performance, making it well-suited for applications in power electronics, LED lighting, automotive, aerospace, and other industries that require high power and high reliability.

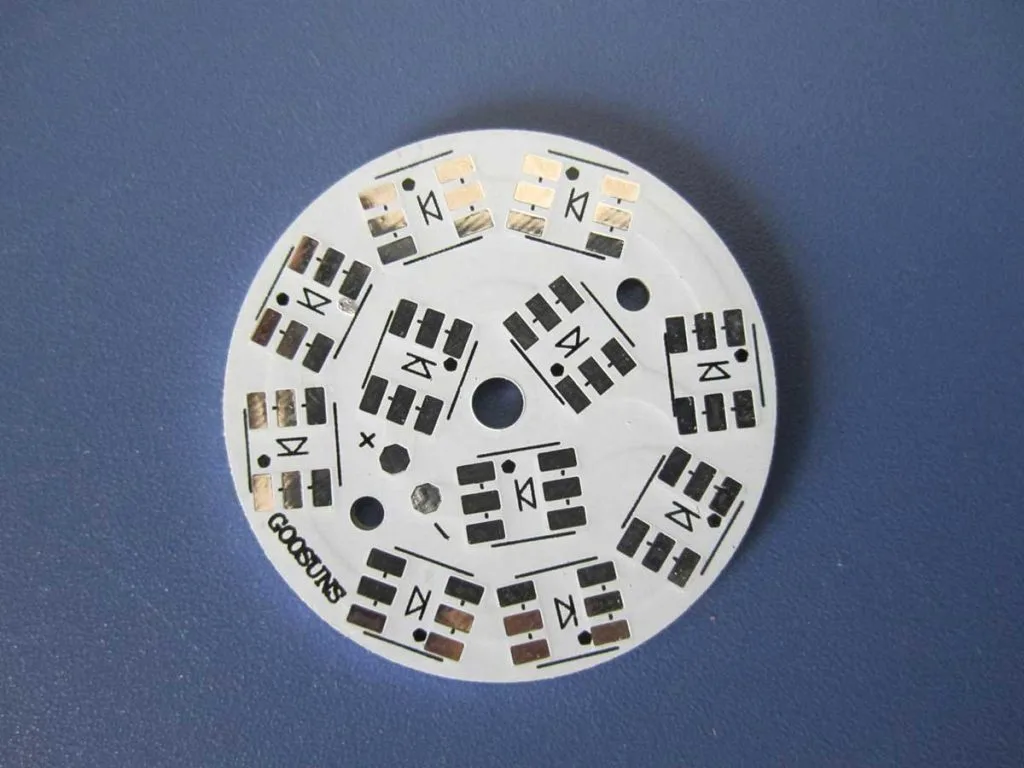

Multilayer Aluminum PCB

Stack up of Multilayer Aluminum PCB

The stackup of a Multilayer Aluminum PCB typically includes alternating layers of aluminum circuitry and insulating material, such as prepreg or polyimide. The specific stackup design may vary depending on the requirements of the PCB, but a common configuration is as follows:

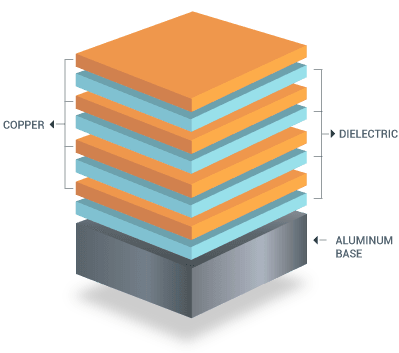

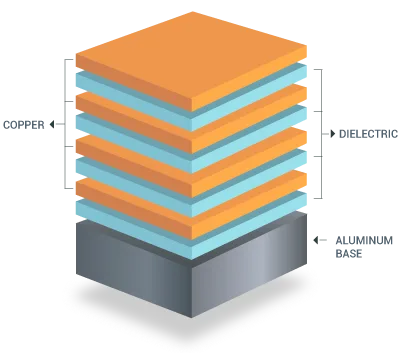

Multilayer Aluminum PCB Stack up
  • Top layer: Copper layer for component mounting and signal routing
  • Insulating layer: Prepreg or polyimide
  • Internal layer 1: Aluminum layer for power distribution and heat dissipation
  • Insulating layer: Prepreg or polyimide
  • Internal layer 2: Aluminum layer for power distribution and heat dissipation
  • Insulating layer: Prepreg or polyimide
  • Internal layer 3: Aluminum layer for power distribution and heat dissipation
  • Insulating layer: Prepreg or polyimide
  • Bottom layer: Copper layer for component mounting and signal routing

The stackup may also include additional internal layers and ground planes depending on the specific design requirements. Vias and plated through holes are typically used to provide electrical connections between different layers. The precise stackup design is critical to the performance of the Multilayer Aluminum PCB, as it affects the electrical, thermal, and mechanical properties of the board.


What are the benefits of use multilayer aluminum PCB?

There are several benefits of using Multilayer Aluminum PCBs:

High thermal conductivity

Aluminum has high thermal conductivity, which means it can quickly dissipate heat generated by components on the board, improving the overall reliability and lifespan of the system.

Excellent heat dissipation

The metal core of the Multilayer Aluminum PCB acts as a heatsink, which can effectively dissipate heat from the components to the surrounding environment.

Low thermal expansion coefficient

The coefficient of thermal expansion (CTE) of aluminum is close to that of silicon, which is commonly used in electronic components, making Multilayer Aluminum PCBs less prone to mechanical stress caused by temperature changes.

Good electromagnetic shielding performance

Aluminum has good electromagnetic shielding properties, which can reduce electromagnetic interference (EMI) and improve the overall performance of the system.

Higher power density

Multilayer Aluminum PCBs can handle higher power densities due to their improved thermal management capabilities, which makes them ideal for high power applications.

What are the applications of multilayer aluminum PCB?

Multilayer Aluminum PCBs are used in a variety of applications where high power and reliability are critical. Here are some common applications of Multilayer Aluminum PCBs:

  1. Power electronics: Multilayer Aluminum PCBs are widely used in power electronics applications, including power supplies, motor control, inverters, and converters.

  2. LED lighting: Multilayer Aluminum PCBs are commonly used in LED lighting applications, as they can efficiently dissipate heat generated by the high-power LEDs and provide stable performance.

  3. Automotive: Multilayer Aluminum PCBs are used in automotive applications, including electric vehicles, battery management systems, and powertrain control modules.

  4. Aerospace: Multilayer Aluminum PCBs are used in aerospace applications, including satellites, avionics, and communication systems, where high reliability and thermal management are essential.

  5. Consumer electronics: Multilayer Aluminum PCBs are also used in a range of consumer electronics, including smartphones, laptops, and tablets, where high power and reliability are critical.

Design Considerations for Multilayer Aluminum PCBs

The design of a Multilayer Aluminum PCB should take into consideration the following factors:

  1. Physical layout: When designing a Multilayer Aluminum PCB, the physical layout of the circuit board should be considered, including the placement of components and the routing of traces. This can affect the board’s thermal management and signal integrity.

  2. Signal integrity: To ensure proper signal integrity, the design should consider the impedance matching of traces, proper termination of high-speed signals, and the use of ground and power planes.

  3. Thermal management: Multilayer Aluminum PCBs are often used in high-power applications, so thermal management is critical. The design should consider the placement of components, the use of thermal vias, and the overall thermal conductivity of the board.

  4. Impedance control: The design should consider the control of impedance across the board, including the proper selection of layer thicknesses, trace widths, and spacing.

Overall, a well-designed Multilayer Aluminum PCB should consider the physical layout, signal integrity, thermal management, and impedance control to ensure reliable and high-performance operation.

High-Quality Aluminum PCB Manufacturing Services by JHYPCB

JHYPCB, a professional PCB manufacturing service provider, offers high-quality Aluminum PCB manufacturing services worldwide. Since its establishment in 2011, JHYPCB has been providing customers with high-quality services through its years of experience and professional technology. Our advanced manufacturing processes, including CNC drilling, etching, copper plating, immersion gold, AOI testing, etc., and equipment technology support multi-layer aluminum substrate manufacturing and high-temperature leaded and lead-free HASL surface treatment to meet various customer needs.

JHYPCB’s Manufacturing Advantages:

  1. Equipment Technology: JHYPCB has advanced PCB manufacturing equipment and technology to meet various customer customization needs.
  2. Quality Assurance: JHYPCB uses a strict quality management system to ensure that the quality of all Aluminum PCBs meets customer requirements.
  3. Cost Control: JHYPCB uses optimized manufacturing processes and efficient production management to ensure that our manufacturing costs are competitive.
  4. Customization Service: JHYPCB can provide various customization services, including multi-layer aluminum substrates, aluminum substrates of different thicknesses and colors, etc.

FAQs of Multilayer Aluminum PCB

A multilayer aluminum PCB is a type of printed circuit board that is constructed using multiple layers of aluminum substrate, with layers of insulation material in between. These PCBs are used in applications where high thermal conductivity and efficient heat dissipation are important.

The benefits of using multilayer aluminum PCBs include high thermal conductivity, efficient heat dissipation, reduced operating temperatures, increased reliability and durability, and the ability to reduce the overall size of the electronic device.

Multilayer aluminum PCBs are used in a variety of applications, including LED lighting, power supplies, automotive electronics, audio equipment, and telecommunications.

The manufacturing process for multilayer aluminum PCBs includes drilling, etching, copper plating, lamination, and surface finishing.

Single-layer aluminum PCBs have only one layer of aluminum substrate, while multilayer aluminum PCBs have multiple layers of aluminum substrate with insulation layers in between. Multilayer aluminum PCBs are typically used in applications where high thermal conductivity and efficient heat dissipation are important.

One of the challenges in manufacturing multilayer aluminum PCBs is ensuring proper thermal management, as the heat generated by electronic components can cause warping and other issues. Additionally, the use of multiple layers and insulation materials can increase the complexity of the manufacturing process.

Aluminum is the main material used in multilayer aluminum PCBs, and the insulation layers are typically made from materials such as epoxy resin, polyimide, or ceramic.

Yes, multilayer aluminum PCBs can be customized for specific applications, with different layer configurations, insulation materials, and surface finishes available depending on the requirements of the project.

JHYPCB uses advanced manufacturing processes and quality control procedures to ensure the quality of its multilayer aluminum PCBs. These include visual inspections, electrical testing, and AOI (Automated Optical Inspection) testing, among others.

Some of the advantages of working with JHYPCB for multilayer aluminum PCB manufacturing include access to advanced manufacturing technology, high-quality products, fast turnaround times, and competitive pricing. Additionally, JHYPCB offers customization services and expert technical support to help customers achieve their desired results.
