JingHongYi PCB (HK) Co., Limited

4 Layer Gold Finger PCB
4 Layer Gold Finger PCB

4 Layer Gold Finger PCB

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Piece/Pieces

Contact Now Add to Basket

Basic Info

    Type: Multilayer PCB

    Base Material: FR4 Tg170

    Dielectric: Prepreg

    Board Thickness: 1.6mm±10%

    Copper Weight: 1oz

    Surface Finish: ENIG 3U"+Gold Plating 30U"

    Minimum Trace Width/Spacing: 0.1/0.1mm(4/4mils)

    Min. Hole Size: 0.2mm

    Hole Copper Wall Thickness: 25.4um

    Flame Retardant Properties: 94 V-0

Additional Info

    Packaging: Vaccum Package

    Productivity: 10000

    Brand: JHY PCB

    Transportation: Ocean,Air

    Place of Origin: China

    Certificate: ISO9001

Product Description

4 Layer Gold Finger PCB Introduction


Multilayer PCB refer to the Printed Circuit Board has more than two copper layers, such as 4 Layer, 6 Layer, 8 Layer, 10 Layer, 12 Layer, etc. As technology improving, people can put more and more copper layers on the same board. Currently, we can produce 20 Layer-32 Layer Fr4 PCB .

By this structure, engineer can put trace on different layers for different purposes, such as layers for power, for signal transferring, for EMI shielding, for components assembly, and so on. In order to avoid too many layers, Buried Via or Blind via will be designed in multi-layer PCB. For board more than 8 layers, high Tg FR4 material will be popular than normal Tg FR4.


4 Layer PCB Manufacturer's Products & Services

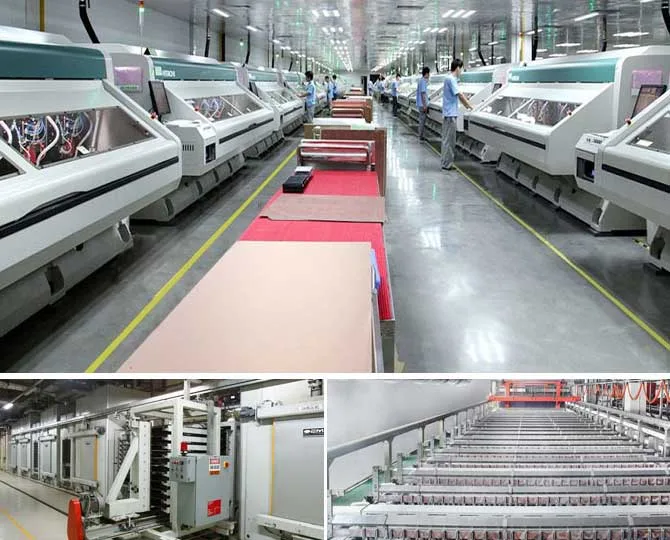

4 Layer Gold Finger PCB Manufacturing

4 Layer Gold Finger PCB manufacturer4 Layer Gold Finger PCB manufacturing

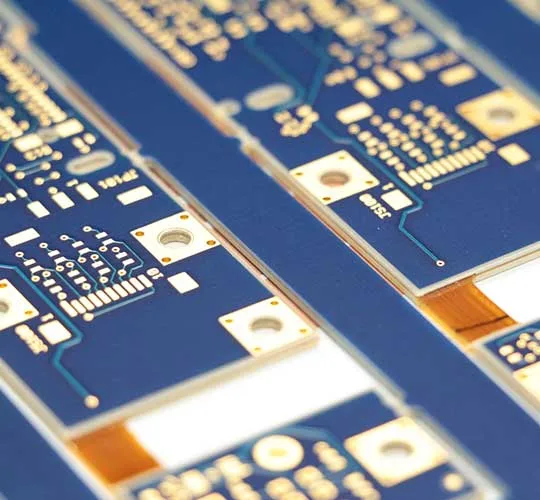

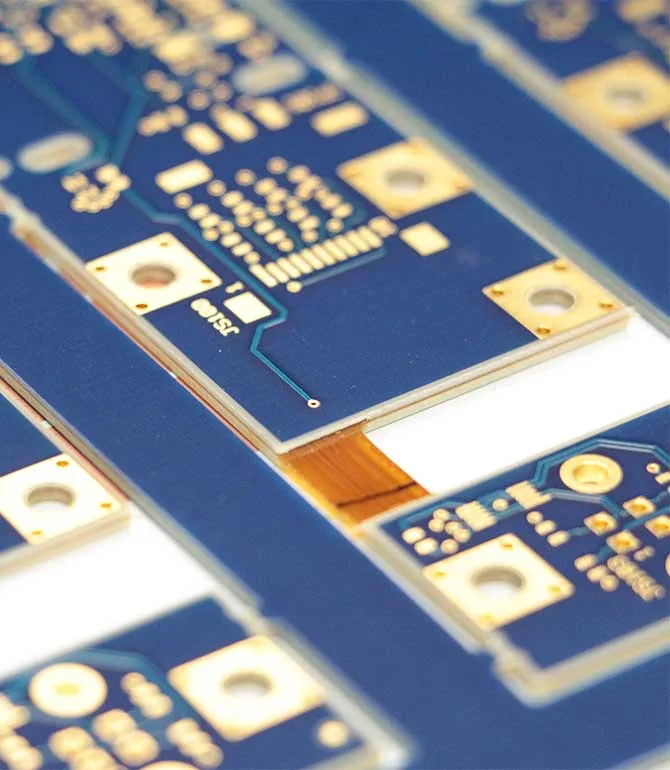

Image for 4 Layer Gold Finger PCB

Gold Finger 20u



Why choose us to 4 Layer Gold Finger PCB fabrication for you?

  • Save money&time! Achieve peace of mind!
  • A professional and trustworthy PCB manufacturer.
  • Fastest PCB Prototype.
  • One stop solution for various PCB & SMT Stencil .
  • Low cost for simple PCB.
  • Affordable price for high-tech PCB.
  • Minimum orders 1pcs.
  • 24-hour online customer service.
  • Professional PCB engineer for one-to-one service.
  • Shipment on time.
  • Guarantee good service and quality from PCB quotation to delivery.

Certification(UL:E466618, TS16949, ISO9001.RoHS)

UL Certification
TS16949 Certification
SGS Certification


PCB Shipment

JHY PCB offers flexible shipping methods for our customers, you may choose from one of the methods below.

Shipment

Shipping Process
After production and testing, your PCB orders will be sent to our shipping department. As the quick turn PCB manufacturer, JHY PCB shipping department will ship your PCB quickly without any pending.

JHY PCB 's Packing Way

  • Use one professional PCB vacuum bag, with desiccant inside. Vacuum compressed totally.
  • Paste label and RoHs mark. Use second vacuum bag to protect boards again, vacuum compressed, make sure no exception.
  • Microsection report and Tin testing board are put together with PCB in cartons.COC (Certificate of Conformity) will be sent to customer by email in PDF.
  • Several layers of thick EPE(Expand aple poly ephylene) are filled fully in gaps between PCBs and cartons. Thickness of 1 layer EPE is 10mm.
  • Neutral Packing is adopted if no special requirements. Strong and thick cartons(Thickness:10mm,7 layers). Different sizes of cartons are designed to meet demand of different PCB size. All package are within weight limit of cartons. For mass production order, no exceed 21kg per carton normally.
  • All cartons sealed with strong adhesive tape should be sealed twice so as to make them more durable.
  • Solid PP/PET strapping is used outside of cartons.
  • Shipping mark, fragile mark and postcode label are all pasted clearly.
Whatever we do or whatever we think of is to make sure boards are shipped to customer safely and quickly.

How to ship your PCB?

  • Firstly, JHY PCB shipping department will print order address and invoice.
  • Secondly, JHY PCB will set the shipment information on the Logistics company website.
  • Thirdly, the Logistics company staff will collect the package from JHY PCB and ship it to you.

Shipment Term

With the purpose of better customer service and meeting the customer demand, JHY PCB provides following shipping methods.
JHY PCB is experienced in exporting. For PCB Prototype and small-medium volume PCB order, we have stable and long-term good relationship with forwarder, such as international express company DHL, FedEx, TNT, UPS. For mass production order, we have famous and reliable shipping company for support.


FAQ
Q1:What is your minimum order quantity?
A:Our MOQ is 1 PCS.

Q2: Do you accept PCB design with different boards on one panel?
A: Of course, we can do different boards on the same panel.

Q3. Are my Gerber Files safe?
A: We protect the intellectual property for customers in the whole process. All documents from customers are never shared with any third parties.

Q4:What is needed for quotation?
A:Quantity, PCB Gerber file, Technical requirements(material, board thickness ,surface finish, copper thickness,solder mask color, silkscreen color ,...)

Q5.How to quote shipping cost?
A: The shipping cost is determined by the shipment way(forwarder name,delievery days),destination, weight&dimension of packages. If you use your own forwarder ,please inform us.

ORDER NOW

Looking for ideal Gold Finger PCB Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 4 Layers Gold Finger PCB are quality guaranteed. We are China Origin Factory of Gold Finger Printed Circuit Board. If you have any question, please feel free to contact us.
