JingHongYi PCB (HK) Co., Limited

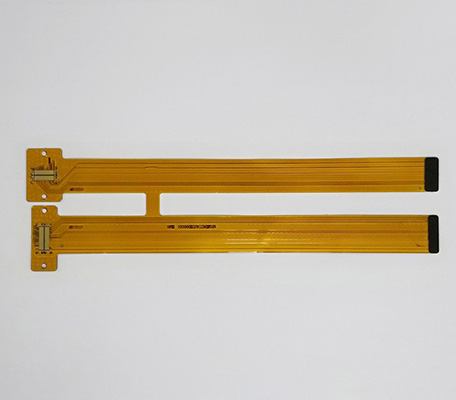

Double Sided FPC Thick Copper PCB Board

Double Sided FPC Thick Copper PCB Board

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Piece/Pieces

Contact Now Add to Basket

Basic Info

    Urgent Prototype: 24-48 Hours

    PCB Prototype: 1-3 Days For Shipment

    Surface Treatment: Immersion Gold

    Application: Manipulator Test Line

    Type: Double Sided FPC Thick Copper Plate

    Size: 270mm * 66mm

    Board Thickness: 0.3mm

    Reinforcement: 0.5mm FR4

    Tolerance: ± 0.03mm

Additional Info

    Packaging: Vaccum Package

    Productivity: 10000

    Brand: JHY PCB

    Transportation: Ocean,Air

    Place of Origin: China

    Certificate: ISO9001

Product Description

Double Sided FPC Thick Copper PCB Board, Double Sided FPC Circuit Board Manufacturer

Product category: FPC Special Process Board
Application: Manipulator Test Line
Type: Double Sided FPC Thick Copper Plate
Size: 270mm * 66mm
Tolerance: ± 0.03mm
Thickness of finished product: 0.3mm
Reinforcement: 0.5mm fr4
Surface treatment: Immersion Gold
Other: expedited sample 24-48 hours / sample 1-3 days delivery

Product features of Flexible PCB :


1. It can be bent, folded and wound freely, and can move and stretch freely in three-dimensional space.

2. Good heat dissipation performance, can use FPC to reduce volume.

3. Realize lightweight, miniaturization and thinness, so as to achieve the integration of component device and wire connection.

FPC applications


  • MP3
  • MP4 player
  • Portable CD player
  • VCD
  • DVD
  • Digital camera
  • Cell phone and cell phone battery
  • Medical equipment
  • automobile
  • Aerospace field

FPC has become an important type of epoxy copper clad laminate with flexible function. The flexible copper clad laminate (FPC) based on epoxy resin is widely used because of its special function, and is becoming an important type of epoxy resin based copper clad laminate.

Development prospect of single sided FPC:


1. thickness. The thickness of single sided FPC must be more flexible and thinner.

2. Bending resistance. Bending is an inherent feature of single-sided FPC. In the future, single-sided FPC must be more resistant to bending.

3. price. At present, the price of single-sided FPC is much higher than that of PCB. If the price of FPC comes down, the market will be much wider.

4. Process level. In order to meet the requirements of many aspects, the process of single-sided FPC must be upgraded, and the minimum aperture, minimum linewidth/line spacing must meet higher requirements.

Double sided Flexible Printed Circuit Board


The double-sided flexible PCB has two conductive layers, between which there is a polyimide insulating layer. The outer side of the conductive layer may be exposed or have a cover, such as a copper pad. Layers are usually connected by electroplated through holes to meet the design and use function of flexibility, but other methods can also be used. The covering film can protect the single and double-sided wires and indicate the location of the components. Like single-sided Flexible Circuits, double-sided flexible PCBs can support other components, such as pins, connectors, and stiffeners.

Double sided flexible PCB stacking mode:

FPC Flexible PCB and Flexible PCB Layout

Application of double-sided Flex PCB


The double sided Flex PCB can be used to:

Ground and power plane applications
Dense surface mount assembly
LCD module for mobile phone
Digital camera
AV and computer optical pickup
Audio Jack
Feature Phone
Smart Phone
Sensor
LCMl Hinge
Touch Panel
Antenna
Wifi
Sidekey
Slider
Keypad
Tablet PC
E-Book

Prospect of double-sided FPC circuit board:


1. Advantages: high density, small volume, light weight and high reliability

2. Disadvantages: high cost, long cycle, high reliability detection means required

Jinghongyi PCB, a professional PCB Prototype and small and medium-sized batch production manufacturer, has nearly 10 years of experience. If you are looking for flexible PCB Manufacturing and assembly services, please contact us. We can meet your production demand and delivery time.

The following is the FPC we have manufactured and the production process we have adopted



Double Sided Flexible Circuits

Double Sided FPC Cable

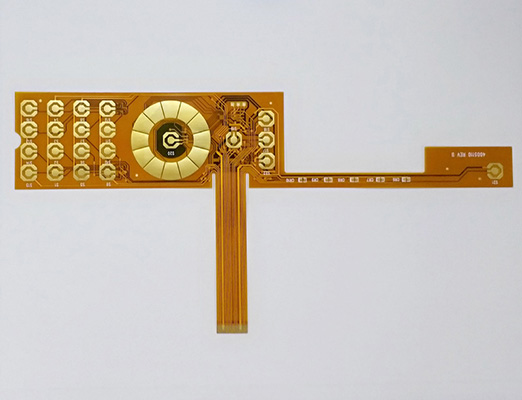

Double Sided Flexible Circuits

Application: communication equipment, tablet computer
Type: FPC double sided board
Size: 158.29 * 33.05mm
Line width / line distance: 0.25mm/0.2mm
Tolerance: ± 0.03mm
Thickness: 0.1mm
Reinforcement: front and back 0.225 pet reinforcement
Surface treatment: immersion Gold 1 Mil
Lead time: expedited sample 24-48 hours / sample 1-3 days delivery

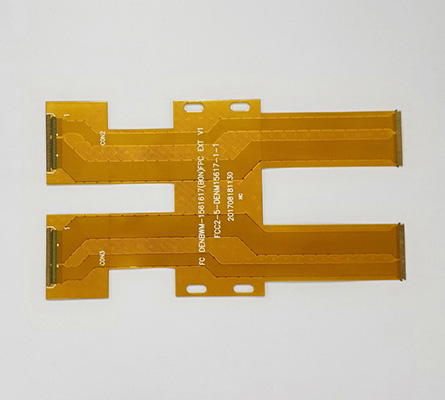

Double Sided FPC Cable


Application: test fixture
Type: double sided FPC cable
Minimum line width / line spacing: 0.09mm/0.05mm
Minimum drilling: 0.2mm
Thickness of finished product: 0.15 + / -0.03mm
Reinforcement: front and back 0.3mmfr4 reinforcement
Surface treatment: Immersion Gold (120 mil thick nickel; 1 mil thick gold)
Lead time: 24-48 hours for urgent Prototype PCB /1-3 days for sample shipment

Double Sided FPC Circuit Board
Double-Sided Flex PCB

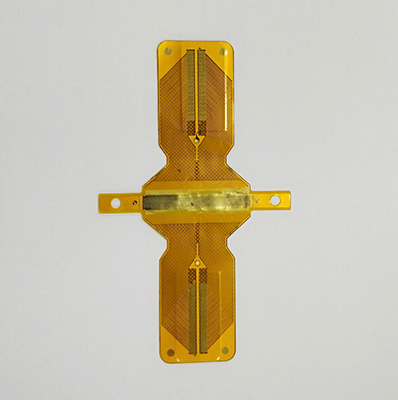

Double Sided FPC Circuit Board


Application: communication equipment, tablet computer
Type: double sided FPC circuit board
Line width / distance: 0.12mm/0.12mm
Size: 71 * 94mm
Tolerance: ± 0.03mm
Thickness: 0.1mm
Reinforcement: 0.225mm pi reinforcement on the opposite side
Shrapnel: C5.0 * 5.0 * 1 elastic force 250
Surface treatment: Immersion Gold 1 mil
Lead time: expedited sample 24-48 hours / sample 1-3 days delivery

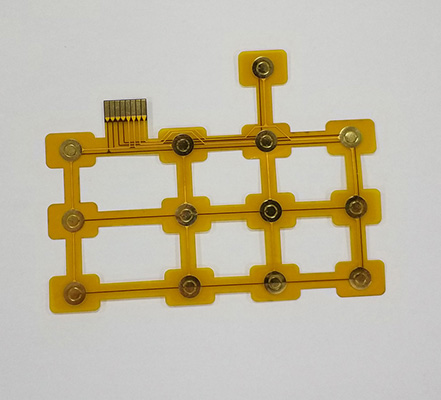

Double-Sided Flex PCB


Application: medical equipment
Type: double sided FPC flexible board
Size: 70.5 * 117.2mm
Minimum drilling: 0.15mm
Plate thickness: 0.1mm
Reinforcement: 0.5mm FR4 on the back of welding pad
Surface treatment: Immersion Gold 1 mil
Line width / distance: 0.1mm/0.08mm
Lead time: expedited sample 24-48 hours / sample 1-3 days delivery

Double Sided FPC Test Board
Double-Sided FPC Printed circuit board

Double Sided FPC Test Board


Applications: testing
Type: double sided FPC test
Minimum line width / distance: 0.3mm/0.25mm
Minimum borehole: 0.15mm
Plate thickness: 0.15mm ± 0.03mm
Reinforcement: 0.8mm fr4 reinforcement on the opposite side
Surface treatment: Immersion Gold
Lead time: expedited sample 24-48 hours / sample 1-3 days delivery

Double-Sided FPC Printed Circuit Board


Application: medical equipment
Type: Double-sided FPC circuit board
Size: 114.11*236.16 mm
Minimum drilling: 0.2mm
Plate thickness: 0.23mm
Reinforcement: 0.15mm PI reinforcement on the back of finger
Surface treatment: Immersion Gold 1 mil
Line width / line spacing: 0.17mm/0.2mm
Lead time: expedited sample 24-48 hours / sample 1-3 days delivery




Flexible PCB Manufacturing Capability

Learn more about JHY PCB by exploring the manufacturing capability of Flexible PCB below. We can do more than you can imagine.

Items Manufacturing Capability
PCB Layers 1 - 8layers
Laminate DuPont PI, Shengyi PI
Maximum PCB Size(Length x Width) Single Sided PCB 480*4000mm
Double Sided PCB 480*1800mm
Multilayers 236*600mm
Minimum Board Thickness Single Sided PCB 0.05mm+/-0.02mm
Double Sided PCB 0.08mm+/-0.02mm
Multilayers As per Gerber
Finished Board Thickness 1-6L 0.05mm-0.6mm
8L 1.6mm
Min Tracing/Spacing Copper Thickness 1/3 oz: 0.076mm/0.076mm (1-6L)
0.05mm/0.05mm (8L)
Copper Thickness 1/2 oz: 0.076mm/0.076mm (1-6L)
0.06mm/0.06mm (8L)
Copper Thickness 1oz: 0.1mm/0.1mm (1-6L)
0.065mm/0.065mm (8L)
Min. Annular Ring 4mil
Minimum Hole Size 1-6L 0.2mm(8mil) (CNC)
8L 0.15mm(CNC)
Solder Mask Color Green, White, Blue, Black, Red, Yellow
Solder-stop coating---Coverlay PI and PET film
Silkscreen Color White, Black, Yellow
Surface Finish OSP
e HASL
ENIG(Electroless NickLead-Freeion Gold) Ni thickness:2-6um
Au thickness:0.025-0.05um
Flash Gold Ni thickness:2-8um
Au thickness:0.025-0.15um
Immersion Tin Tin thickness:0.5-1um
PlatingTin Tin thickness:1-10um
Laser cuPunching
Special technologies Peelable solder mask
Gold fingers
Stiffener (only for PI/FR4 substrate)
Impedance Control+/-10%
Rigid Flex PCB

Looking for ideal FPC Heavy Copper PCB Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the FPC Thick Copper PCB are quality guaranteed. We are China Origin Factory of FPC Circuit Board. If you have any question, please feel free to contact us.
